RFID Reader

RFID reader module size dimension

Mini RFID Reader (for 13.56MHz RFID Tags)

Small mini RFID reader capable of reading 13.56MHz RFID tag ID. The size is only 59 x 35mm.

This RFID reader module is designed to work with the following RFID tags,

  • Mifare Classic Mini, S20
  • Mifare Classic 1k, MF1 S50
  • Mifare Classic 4k, MF1 S70

The module is able to read the tag ID via the UART communication port. There is also a digital output pin which will be activated if there is a RFID card detected within the detection range of about 50 to 70mm.

This module can be integrated with a controller, microcontroller or to a computer USB/RS232 via a UART converter.

Mini RFID Reader (Front)

RFID Reader RF scanning surface front.

Mini RFID Reader (Front)

RFID antenna is integrated on this board module.

Mini RFID Reader (Back)

RFID Reader electronic component mounting at the back.

Mini RFID Reader (Back)

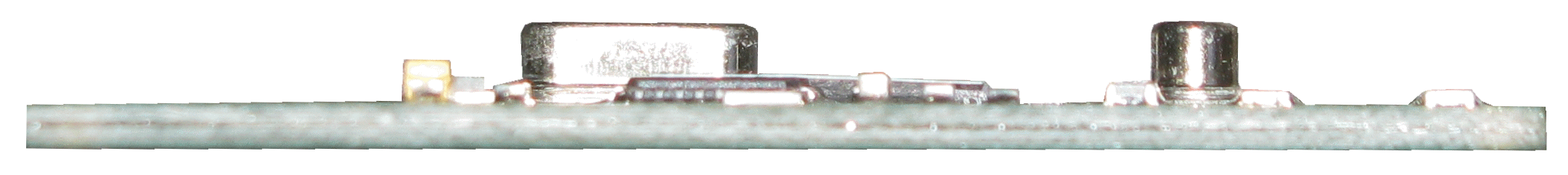

Mini RFID Reader (Side)

Side view of this mini RFID Reader.

Ultra thin module.

Only 5mm to 6.2mm thick.

Actual size is 59 x 35 x 6.2mm

This mini RFID reader is now available for $8 each on PIC-STORE. Buy your mini RFID reader now!!!

Cheap low-cost RFID reader.

Custom RFID Reader Solution

Contact PIC-CONTROL today for your RFID or NFC reader customisation. We can help you custom the electronic hardware as well as the backend software.
