RS232 to Pulse Acceptor Output

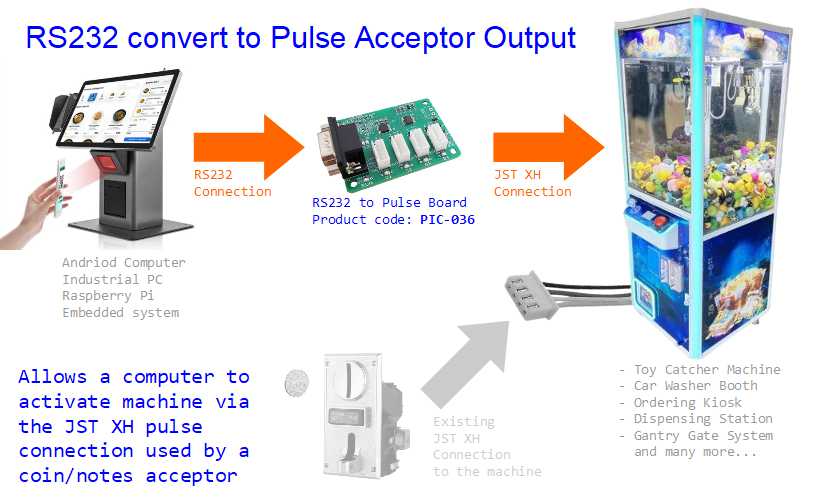

This is a device which allows you to simulate a pulse-based coin/note acceptor, to send a trigger signal to activate a vending machine. You can use your computer device to send an RS232 command to this board. The board will then send a trigger signal to activate your machine.

RS232 to Pulse Acceptor Output

Application

  • Toy Catcher (claw machine)
  • Drink vending machine
  • Arcade gaming machine
  • Car wash dry kiosk
  • Meal vending machine
  • Ice-cream machine
  • Water dispenser machine
  • Fuel dispensing machine
  • Snacks vending machine
  • Self-service ticketing kiosk
  • Self-ordering kiosk
  • Children kiddle ride
  • Gantry barrier gate system
  • Laundry washer/dryer machine for laundromat store

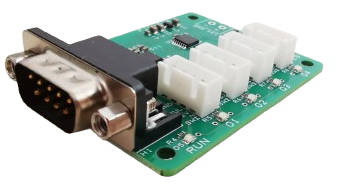

PIC-036 RS232 to Pulse

PIC-036 RS232 to Pulse output (replace coin acceptor)

This board is specially designed to act as a coin or note acceptor to activate your machine.

It allows your computer system to generate a pulse signal that can activate the machine you want to control.

The cable connection to the machine uses JST XH series connector which is a very common connector use for coin acceptor machines in the vending or automated machine industry.

Other communication connection

If you computer is using a connection other than RS232, you can contact us for customisation of the communication.

Example of other connection available

  • USB connection
  • Ethernet communication
  • Bluetooth or Wifi wireless

Contact us for further information.

Click here to contact us via Whatsapp or Email.
