Communication Integration

Connect Communication Wire PlugPreview Changes (opens in a new window)

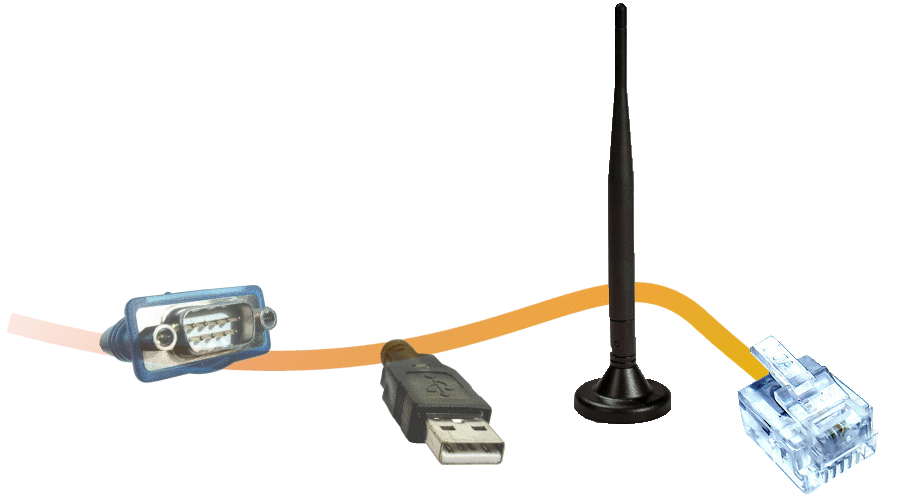

Device Connectivity

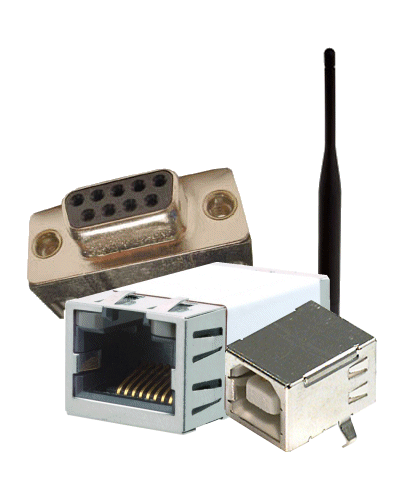

connector1The world is getting more integrated as a system. Communication devices becomes more integrated as a system.

Whatever electronics that you need to integrate, we can provide you the right solution to help you get connected to the rest of the systems.

We can connect, convert or developed the following communication connectivity.

High Level Data Protocol

  • ModBus (uses Ethernet RS232, RS485)
  • CAN, Controller Area Network (uses RS485, standard for Automotive Communication Bus)
  • KNX (with EIB)
  • Profibus (Process Field Bus)
  • TCP/IP
  • UDP
  • MDB (Multi Drop Bus protocol), VCCS, JVMA
  • Multi-Master Bus

Wired Data Communication

  • RS232, RS485, RS422
  • Ethernet
  • USB (Universal Serial Bus)
  • EIB (European Installation Bus)
  • LIN (Automotive Single Wire Bus)

Wireless Data Communication

  • WiFi
  • NFC (near field communication)
  • Mifare RFID reader/tags
  • Wireless 2.4Ghz, 300-900Mhz
  • ZigBee®, XBee, MiWi, Bluetooth, Wibree, Wireless USB, Z-Wave
  • GSM, GPRS, HSDPA (2G, 3G, 4G) communication

Electronic IC Chip Low Level Data Communication

  • UART (Universal Asynchronous Receiver Transmitter)
  • SPI (Serial Peripheral Interface)
  • I2C (Inter-Integrated Circuit)

Ethernet, WiFi Integration

Ethernet Connectivity

Ethernet is the most popular communication connectivity used in almost everywhere from factories, offices and homes all over the world. The wireless version of Ethernet is known as WiFi working on 2.4GHz frequency band.

The Ethernet communication connectivity has evolve from a low data bit rate to a high speed of 1Gbps connectivity. It works on a duplex communication with a pair of TX (TX+, TX-) and RX (RX+, RX-) differential signal. The differential signals wire being twisted together helps to maintain the signal integrity, minimum signal distortion (noise) from the environment. Shield cable can be used to further protect the integrity of the communication signal.

Ethernet and WiFi connectivity is strongly recommended integrating to other communication system in the internet all over the world.

Get your electronics connected through the Ethernet.

Communication Distance

Standard recommended maximum communication distance for Ethernet is 100m.

Connector & Wiring

— (picture of RJ45)(picture of Ethernet cable and color wiring)

RS232 Connectivity

RS232 is a serial data communication and has been around for quite some time. While standard like parallel communication or IEEE488.2 phasing out into the history, RS232 still survive strong.

RS232 needs a minimum of 3 wires to begin communication between devices, namely Rx Tx and Signal Gnd. The single-ended physical signal used for RS232 is simple to decode and configured.

Cost of implementing RS232 connectivity is low.

Communication Distance

This table is a reference guide for the communication distance given the baudrate set. The actual distance depends on many other factor like the type of cable use, the noise along the communication cable, etc…

  Baudrate Distance
  1200bps 1200m (max)
  2400bps 900m
  4800bps 300m
  9600bps 150m
  19200bps 15m

Connector & Wiring

—(picture of DB9 pin out)(picture of RJ45 pin out for device serial console)

RS485, RS422 Connectivity

RS485 and RS422 is a differential signal communication channel. RS485 and RS422 is using the same physical signalling. The only difference is that a RS485 is a half duplex, while a RS422 is a full duplex communication. Check out this website for duplex communication.

Differential signalling is robust against noise from the surrounding. Twisted pair (twisted wire) is  to be use for RS485 and RS422. The twisted wire helps to maintain the signal integrity, robust against unknown noise. Having the wire twisted is more important than everything else as the twisted wire leave no gap between the wire which allow noise to be induce onto the communication medium. Like the Ethernet differential wiring, additional shielding of the cable helps.

Communication Distance

This table is a reference guide for the communication distance given the baudrate set. The actual distance depends on many other factor like the type of cable use, the noise along the communication cable, connected load, etc…

  Baudrate Distance
  100Kbps 1200m (max)
  1Mbps 100m
  10 to 40Mbps 10m

Connector & Wiring

—(picture of twisted pair wire)

USB Connectivity

USB Connectivity

Communication Distance


NFC (Near Field Communication)

Wireless (315MHz, 434MHz, 900MHz)

Zigbee (XBee)



Data Integration

Data Integration. Connecting Information and Communication




Integrate your
communication connectivity

Contact PIC-CONTROL today!
