Customized Electronics Solution




We can design electronics to your needs.



















  PIC-010 DataAlarm









PIC-011 powered by Xport, is able to convert your old RS232 device to a network/Ethernet communication deivce. Wiring infrastructure using Ethernet helps to consolidate the messy cables into a single network cable plugged to your computer. This will be neater over the conventional wiring.



PIC-011 can accept a wide range of voltage. The power from your USB port will be enough to provide enough power for this small converter. This device is device has a smart power controller built in and can accept a wide range of regulated or unregulated dc voltage. This allows user to easy draw power from another power source without having to buy a delicated power supply or power adaptor.



We also provide service to help our customer with their product communication conversion. Please contact us for further information.





Xport info:

Your product that is using UART serial communication can be easily converted to Ethernet with Xport.



Reference for XPort:

XPort User Guide.pdf

XPort_Integration Guide.pdf

XPort_Product Brief.pdf

XPort_DemoKit_QS.pdf


XPort distributor:
Avanca Technologies


  PIC-011 RS232 to Ethernet converter
  • accept wide range of input voltage 5V 12V 24V
  • miniature size 40 x 40mm
  • various RS232 socket mount position.
  • mounting holes for your casing.
  • easy to deploy on-site with pluggable terminal.
  • support up to 115Kbps.
  • support Xport component.
  • PIC-011 product.pdf



Note: Please take note that this product does not comes with a power adaptor.





Shop now at PIC-StoreBuy now at PIC-Store
















  PIC-012 Key baSIC
  • customized keyboard/keypad
  • easy to use, USB HID interface
  • no driver required
  • color keys
  • Cherry Mechanical Switches
  • legend-able caps
  • easy storage, pluggable cable.
  • design for use in horizontal or vertical position.
  • PIC-012 userguide.pdf









  PIC-013 ECU
  • CNG gas injection system for diesel vehicle. Dual fuel system, DDF (Diesel/CNG).
  • ECU controller.
  • Suitable for diesel vehicle, van, trucks, taxi.













PIC-014 powered by Matchport, is able to convert your old RS232/(RS485 or RS422) device to a wired (Ethernet) or wireless (Wifi) communication deivce. PIC-014 is able to consolidate 2 of your serial devices into one internet IP address. It can also act as a bridge to convert Wifi to Ethernet.



PIC-014 has a smart power controller built in and can accept a wide range of regulated or unregulated dc voltage. This allows user to easy draw power from another power source without having to buy a delicated power supply or power adaptor.





We also provide service to help our customer with their product communication conversion. Please contact us for further information.







Matchport info:

Your product that is using UART serial communication can be easily converted to WiFi with Matchport.


Reference for MatchPort:

MatchPort User Guide.pdf

MatchPort_Integration Guide.pdf

MatchPort_Product Brief.pdf

MatchPort_DemoKit_QS.pdf


Please take note that WiPort is no longer available and will be replaced by MatchPort.




WiPort distributor:
Avanca Technologies

  PIC-014 WiFi to Serial RS232/RS485/RS422 converter
  • wide input voltage 12V, 13.2V, 24V
  • 1x RS232 port
  • 1x RS232/RS485/RS422 port
  • 1x Ethernet
  • easy and convenient to deploy on-site with pluggable terminal.
  • support up to 115Kbps.
  • support MatchPort, WiPort component.
  • PIC-014 product.pdf



Product is for data communication conversion. Convert wireless WiFi, to and from the following physical data.

  • Wire Ethernet
  • Port0, RS232
  • Port1, depend on the model

       (RS232/RS485/RS422)



    Models available:
  • PIC-014-232
  • PIC-014-485
  • PIC-014-422









Note: Please take note that this product does not comes with a power adaptor.





Shop now at PIC-StoreBuy now at PIC-Store

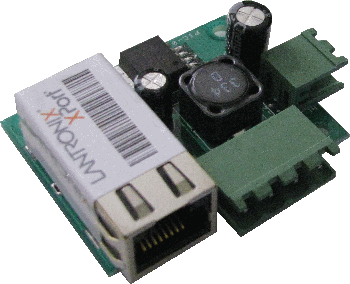

  PIC-015 RS485/RS422 to Ethernet converter
  • wide input voltage 12V, 13.2V, 24V
  • easy and convenient to deploy on-site with pluggable terminal.
  • mounting holes for your casing.
  • support up to 115Kbps.
  • support Xport component.
  • PCB board size 38 x 50mm



Note: Please take note that this product does not comes with a power adaptor.













  PIC-016 I/O Controller for Matchport/Xport
  • wide input voltage 12V, 13.2V, 24V
  • 1x Input (dry contact)
  • 1xOutput (dry contact)
  • easy and convenient to deploy on-site with pluggable terminal
  • support Wifi (MatchPort) or Ethernet (Xport) component
  • PCB board size 66 x 83mm
Note: Please take note that this product does not comes with a power adaptor.







    PIC-017 DTMF decoder (USB CDC serial interface)


    PIC-018 LED Lotus Lamp Driver board
  • 230Vac input voltage
  • Drive LED Lotus Lamp lightings.


    PIC-019 Zigbee Weighting Scale
  • 12Vdc input voltage
  • Zigbee Wireless
  • range 5Kg - 200kg


pic-020 XBee Raspberry Pi boardpic-020 XBee Raspberry Pi board


PIC-020 is a add-on board to allow Digi XBee (
zigbee module) to plug onto a Raspberry Pi module. Power supply to the XBee will be power by Raspberry Pi, and communication will be via Com port 1 (TXD, RXD). The board contains 3x LED to indicate the XBee communication status.

pic-020 XBee Raspberry Pi casing

With some modification, PIC-020 can be enclosed with a standard Raspberry Pi enclosure/casing.

PIC-020 can also be soldered with more components and be used as a general purpose I/O board. Up to 2x relay or opto-coupler can be soldered on-board for dry contact operation. It will allow Raspberry Pi to interface with external electrical or electronics devices.
  PIC-020 Zigbee on Raspberry Pi
  • Socket for Digi XBee module.
  • Raspberry Pi extension board.
  • 3x LED indicators for XBee operation.
  • XBee is powered by Raspberry Pi.
  • Space saving add-on board with XBee mounted on the reverse side.






PIC-021 RFID Card Key Switch is design to activate the electrical power to your hotel room when a RFID key card is inserted into the card key holder.

Warm light
on the card key holder will glow continuously in the dark to draw the attention of your hotel guest to insert their card key when they have entered into their room. When the card key is detected, the light glowing will stop, and the output (dry contact) from the RFID Card Key Switch will be activated. This will activate the electrical power for their room.

Removing the RFID card from the card key holder will cut-off the electrical power of your hotel room. A timer can be set from the module to control the delay to cut-off the power after the card key is removed. This delay will allow your guest to have enough time before their lights is automatically cut-off. Preset power cut-off delay timing is 0sec, 5sec, 10sec, 20sec, 40sec, 60sec, 120sec, 180sec.





PIC-021 RFID Card Key Switch, for Hotel Room Energy Saving
  • Detects RFID Card Key (MIFARE Classic).
  • Insert/Remove Card Key smoothly with any force/resistance.
  • Glowing warm light to draw room guest attention.
  • wide input voltage 12V, 13.2V, 7V to 24V.
  • Dry contact output up to 0.5A.
  • Adjustable power cut-off delay.
  • PIC-021 user guide.pdf






PIC-022 Unipolar Stepper Motor Driver
  • 48-60Vdc input voltage
  • High Voltage driver driving unipolar stepper motor.
  • Opto-coupler isolated signal, enable, direction, steps (clock).


















PIC-101 converts a wide range of voltage input to a lower preset voltage. Typical regulated voltage output 3.3V, 5V, 12V, or the adjustable version capable of regulating a voltage out range from 3V to 24V.





Note: Please take note that this is a step down voltage converter. The input voltage has to be higher than the output voltage.

  PIC-101 DC-DC converter
  • wide input voltage 12V, 13.2V, 7V to 24V.
  • voltage output 3.3V, 5V, 12V or 3V to 24V range.
  • easy to deploy on-site or factory.
  • PIC-101 user guide.pdf





Shop now at PIC-StoreBuy now at PIC-Store









Models

available

Voltage out Current
PIC-101-a33 3.3V 1A
PIC-101-a05 5.0V 1A
PIC-101-a12 12V 1A
PIC-101-aADJ Adjustable 1A
PIC-101-b33 3.3V 3A
PIC-101-b05 5.0V 3A
PIC-101-b12 12V 3A
PIC-101-bADJ Adjustable 3A



For customised model, feel free to contact us.






    PIC-102 Step-down DC Voltage Regulator (up to 5A)

    PIC-103 Step-up DC Voltage Regulator (up to 1.2A)

    PIC-110 DTMF controller




    PIC-111 RS485 IO controller




Ethernet I/O controller
PIC-1
12 is a Ethernet/WiFi connected I/O controller which allows you to control on/off, or control/drive external hardware devices.

Please visit PIC-112 product page for more details.
  PIC-112 Network IO controller
  • Control I/O (input/output) using Ethernet/WiFi or RS232 communication port.
  • 2x Input and 2x Output port (customizable up to 4x input or output)
  • Input is opto-coupled protected.
  • Output is contact switch. (dry contact)
  • LED indicators.
  • 12V, 7-24V operation. Low power.
  • Enclosure (available separately)
  • Pluggable screw terminal interface to ease installation and maintenance work.
  • Use Java, Visual Basic/C++/C#. Source code examples are available for download.
Please visit PIC-112 product page for more details.
Shop now at PIC-StoreBuy now at PIC-Store







PIC-113 is a USB connected I/O controller which allows you to control on/off, or control/drive external hardware devices. It has inputs which allow interface to sensors or a simple contact switch. Command can be sent via the USB (virtual com port) or RS232 port by opening a communication port through your software. Communication stream can be opened using the standard library from the typical C#, C++, Visual Basic, Java, etc... programming language.



USB control power switch

Control Vac Power Socket using USB port
allow a computer to control the power to from a 230/110Vac power socket to appliances. The control command will be communicate via a virtual serial communication port. For Setup and Command, you can refer to the documentation for PIC-113.

For control vias network ethernet socket, please contact us for your customisation requirements.

  PIC-113 USB/RS232 IO controller
  • Control I/O (input/output) using USB or RS232 communication port.
  • 2x Input and 2x Output port (customizable up to 4x input or output)
  • Input is opto-coupled protected.
  • Output is contact switch. (dry contact)
  • LED indicators.
  • 5V operation. Low power.
  • Enclosure (available separately)
  • Pluggable screw terminal interface to ease installation and maintenance work.
  • Use Java, Visual Basic/C++/C#. Source code examples are available for download.
Please visit PIC-113 product page for more details.







    PIC-114 IR controller







    PIC-115 Touch sense

- Touch AC switch






Click on the picture for the enlarge view.

  PIC-116 Mini Touch Sensor

PIC-116 is a miniature touch sensor module which can be integrated with any device that accept input. The light weight module allows itself to be stick to surface using adhesive material.

  • Ultra mini size (21.5 x 10.2 x 3mm)
  • Ultra light weight (1g)
  • Wide supply voltage (1.8V, 3.3V, 5V)
  • NPN output (drive up to 40V 0.5A)
  • PIC-116 mini touch sensor.pdf





Shop now at PIC-StoreBuy now at PIC-Store



Highlight:

  • Sensitive to touch
  • Longer operating lifespan (no moving mechanical parts, no wear and tear)
  • Can be easily conceal/hidden behind surface.
  • Easy to install in tight spaces. Small, flat (low profile).
  • Easy to deploy and use. Stick it on the surface, to deploy your touch sensitive button.
  • Robust against moisture, water resistance
  • Works with a lot of material. Through glass, plastic and metal surface.
  • Works through gloves
  • Braille friendly
  • Touch sensitivity can be increase by with a higher capacitance Cs. Cs value can range from 2 50nF.
  • Touch surface can be extend to an external surface by soldering the interface to H1 pad.


Application:

  • Water resistance enclosure
  • User interface application





The AC switch is suitable for 110Vac-230Vac operation. Compare to a mechanical relay, which requires a typical trigger input of 5-24V 30-150mA. Mechanical relay for high voltage/current operation will result in arcing, which can weld the contact, forming a permanent joint after long use. This may result in operation failure.

The AC switch is made of semiconductor material and will not have such issues; it does not have any mechanical part. The AC switch will switch during the zero crossing, therefore minimize suddenly surge/spark upon switching on.



  PIC-117 Solid state AC switch

PIC-117 This is a non-mechanical SPST (single pole single throw) relay switch which does not have any moving mechanical part. The switch requires only a minimum of 3.3V 5mA to activate the AC switch. Digital input voltage can range from 3.3V-12V, suitable for direct control from microcontroller's low voltage output.

  • Ultra mini size (40 x 16.5 x 12mm), takes up less space.
  • Ultra light weight (5g)
  • No mechanical relay noise.
  • No moving mechanical parts, no wear and tear
  • Longer operating lifespan
  • Robust to moisture environment
  • Low voltage/current (3.3V-12V 5mA) to turn on AC switch
  • Soft turn on.
  • No spark generated. (Less hazard to a hash environment, less interference).
  • No latch up.
  • No electric current arcing resulting in contact welding or sticking
  • No EMI due to switching sparks/arcs
  • Faster response.
  • Shock and vibration resistant.
  • Compatible to your existing mechanical relay
  • PIC-117 AC Relay Switch.pdf





Shop now at PIC-StoreBuy now at PIC-Store





Please contact us for further inquiries or requirements. We modify/customize the module to your specification.




    PIC-118 RF wireless remote control

    PIC-120 NFC wireless transceiver (UART serial)







Use PIC-200 to surface mount IC with your soldering iron or rework station. Suitable for the following & many other IC,

  • PIC16F877 (TQFP-44 pins)
  • PIC18F4550 (TQFP-44 pins)
  • PIC24FJ64GA004 (TQFP-44 pins)
  • PIC16F876 (SOIC-28pins)
  • PIC18F2550 (SOIC-28pins)
  • MCP23S17 (SOIC-28pins)
  • MCP23S16 (SOIC-28pins)
  • PIC16F628a (SOIC-18pins)
  • MAX232, MAX485 (SOIC)
  • 555 (SOIC)
  • BC817, BC818 (SOT23-3)
  • MCP9700a (SOT23-3)
  • MCP4011, MCP41010 (SOIC)
  PIC-200 SMD IC adapter, SMD to 2.54mm pitch

SMT adaptor for your prototyping needs. The multi-adaptor board footprints are designed for mounting various type of SMD IC component. Converting them to a convenient module with pin spacing of 2.54mm pitch. PIC-200 SMD IC test adaptor is definitely handy for your prototyping needs.

  • TQFP-64 pins (pitch 0.8mm)
  • TQFP-44 pins (pitch 0.8mm)
  • QFN 16,28,44 pins (0.65mm)
  • SOIC (wide/narrow, 1.27mm) 16,18,20,24,28 pins
  • SOT23 3L,5L,6L,12L pins
  • PIC-200 datasheet.pdf
You can download the datasheet for more detail.





Shop now at PIC-StoreBuy now at PIC-Store







For other IC adaptor, you can contact us for further information.















Use PIC-201 to surface mount IC with your soldering iron or rework station. Suitable for the following & many other IC,

  • PIC24FJ256GB110 (TQFP-64 pins)
  • PIC24FJ128GA006 (TQFP-64 pins)
  • MCP23S17 (SSOP-28 pins)
  • MAX3237 (SSOP-28 pins)
  • MAX3222 (SSOP-20 pins)
  • MAX3221 (SSOP-16 pins)
  • MAX4562 (QSOP-16 pins)
  • MAX4574 (QSOP-28 pins)
  • MAX9653 (uMax-10 pins)
  • MAX9921 (uMax-10 pins)
  • MAX6648 (uMax-8 pins)
  • MAX9928 (uMax-8 pins)
  PIC-201 SMD IC adapter, SMD to 2.54mm pitch

SMT adaptor for your prototyping needs. The multi-adaptor board footprints are designed for mounting various type of SMD IC component. Converting them to a convenient module with pin spacing of 2.54mm pitch. PIC-201 SMD IC test adaptor is definitely handy for your prototyping needs.

  • TQFP-64 pins (pitch 0.5mm)
  • QSOP 16-28 pins (0.635mm)
  • SSOP 16-28 pins (0.65mm)
  • uMax-10 pins (0.5mm)
  • uMax-8 pins (0.65mm)
  • PIC-201 datasheet.pdf
You can download the datasheet for more detail.





Shop now at PIC-StoreBuy now at PIC-Store





For other IC adaptor, you can contact us for further information.











The adaptor is ultra small measuring 13 x 10 x 1.6 mm, weighting 0.4g.

Vertical pitch spacing is 2.54mm, Horizontal pitch is 10.16mm

Use PIC-202 to surface mount IC with your soldering iron or rework station. Suitable for the following & many other IC,

  • Op-amps

  • Voltage reference IC

  • Microcontroller
  • Sensors
  PIC-202 SMD IC adapter, SOIC TSSOP to 2.54mm pitch

SMT adaptor for your prototyping needs. The multi-adaptor board footprints are designed for mounting SOIC and TSSOP IC component up to 8 pins. Converting them to a convenient module with pin spacing of 2.54mm pitch. Suitable for 2.54mm pitch prototyping board or training module. PIC-202 SMD IC test adaptor is definitely handy for your prototyping needs.

You can download the datasheet for more detail.





Shop now at PIC-StoreBuy now at PIC-Store





For other IC adaptor, you can contact us for further information.
















  PIC-210 Prototyping Board

PCB prototyping board with built in DC-DC voltage regulator providing 5V, 3.3V 1A regulated voltage supply.

  • wide input voltage from 6V, 12V, 13.2V, 24V up to 30V
  • 5V (V1), 3.3V (V2) voltage supply available on board. Up to 1A.
  • protection against reverse polarity.
  • plain pad via 2.54mm pitch for through hole prototyping
  • plain pad smd 0.5mm pitch for surface mount prototyping
  • Surface mount for 4 type of footprint.
  • TQFP-44 pins (pitch 0.8mm)
  • SOIC-22 pins (wide, 1.27mm)
  • SOIC-8 pins (narrow, 1.27mm)
  • SOT23-6 pins (pitch 0.95mm)
  • ICSP pin out
  • mounting for crystal
  • Fit to PiC-Box03 enclosure.
Design for use with the following microcontroller.
  • PIC24FJ64GA004 (TQFP-44)
  • PIC24FJ64GA104 (TQFP-44)
  • PIC24FJ64GB004 (TQFP-44)
  • PIC24F32KA304 (TQFP-44)
  • PIC24FJ32MC104 (TQFP-44)
  • dsPIC33FJ128GP804 (TQFP-44)
  • dsPIC33FJ128MC804 (TQFP-44)
  • PIC24FJ64GA002 (SOIC-28)
  • PIC24F16KL402 (SOIC-28)
  • PIC24F32KA302 (SOIC-28)
  • PIC24FJ64GA102 (SOIC-28)
  • PIC24FJ64GB002 (SOIC-28)
  • dsPIC33FJ32GP102 (SOIC-28)
  • dsPIC33FJ128GP802 (SOIC-28)
  • dsPIC33FJ128MC802 (SOIC-28)
  • PIC12F1840 (SOIC-8)
  • PIC12F1822 (SOIC-8)
  • PIC12HV615 (SOIC-8)
  • PIC12F508 (SOIC-8)
  • PIC10F322 (SOT-6)
  • PIC10F200 (SOT-6)
Other microcontroller's model may be compatible or need slight modification on the prototyping board.












 pic-211 prototyping board

pic-211 prototyping board
  PIC-211 Mini Prototyping Board

PCB prototyping board is built small to fit into tight space.

Mini PCB size is only 50 x 36mm.

  • onboard LDO voltage regulator footprint.
  • protection against reverse polarity.
  • plain pad via 2.54mm pitch for through hole prototyping
  • plain pad smd 0.5mm pitch for surface mount prototyping
  • Surface mount for 2 type of footprint.
  • SOIC-8 pins (narrow, 1.27mm)
  • SOT23-6 pins (pitch 0.95mm)
  • ICSP pin out
  • Mini PCB size 50 x 36mm, can be cut to a smaller usable size of 19 x 25mm
  • Fit to PiC-Box01 enclosure.
  • PIC-211 schematic & PCB layout.pdf

Design for use with the following microcontroller.

  • PIC12F1840 (SOIC-8)
  • PIC12F1822 (SOIC-8)
  • PIC12HV615 (SOIC-8)
  • PIC12F508 (SOIC-8)
  • PIC10F322 (SOT-6)
  • PIC10F200 (SOT-6)















Product Illustration...

LED light intensity is define by millicandela (mcd). MCD defines the light intensity within the focused beam region.



  PIC-250 LED strip

LED strip PCB board feature close to 0 spacing for your 5mm LED. The close proximity allows more LED to be mounted and hence maximize the intensity of your lighting zone. Mount the brightness LEDs that you can find and concentrate all the power of your lights.

  • up to 48 LED per PCB strip.
  • breakable strip in sets of 4 LED in series.
  • designed for 12V supply and above.
  • Mount up to 5mm round type LED lamp package, pitch 2.54mm
  • Resistors 0.125Watt (reverse mount)
  • PIC-250 datasheet.pdf
Shop now at PIC-StoreBuy now at PIC-Store

Water Clear LED 3mm, available for indication purpose

Green   (568nm, 26mcd)

Yellow  (587nm, 32mcd)

Amber  (610nm, 33mcd)

Orange Red (635nm, 35mcd)

Hi- Red (697nm, 9mcd)














For customized voltage supply rating, brightness or other requirements, feel free to contact us.

PIC-LED flood light

Ultra Bright White LED flood light. Specially design with minimum LED spacing to maximum brightness within 135 x 116mm board space. Highly efficient energy saving LED lightings with uniform brightness for, video/ image/ OCR capture or flush light application .

  • Thin slim profile 5mm
    Voltage range 8 - 12Vdc
    Lighting angle 120 degree
    M3 screw mounting
  • PIC-LED v1_0.pdf

Supply Voltage

Current LUX at 3m
8Vdc 1A 47
10Vdc 4.5A 226
12Vdc 9A 353

Optional Accessories

  • stainless steel casing+ tampered glass





PIC-LED light therapy

- Infra Red (IR 880nm)- Red (655-660nm) - Amber (588-593nm)- Green (525-530nm)

- Blue (425-430nm)





Alarm with Mute switch

A mini custom alarm which will buzz loudly when an emergency event occurred. Sound can only be mute manually, which can ensure personnel is aware of any event. The alarm will buzzing again every 30 minutes if the event is not resolved.

This custom alarm has an internal buzzer/sounder with a power input and a trigger interface for the alarm. The input can trigger the alarm through external contact switch (or dry contact). The alarm will buzz indefinite until the trigger input is release. The buzzing alarm can be temporary muted for 30 minutes by pressing the mute switch.

Video: Alarm with Mute switch.avi

This alarm is can be customised for other timing required.









PiC-Box

Feature various enclosure box to house your electronics circuit. Click here for more information.





Click here to shop at our PIC-Store now.


..........Shop now at PIC-Store


Feel free to contact us for other enquiries.



Other references:
- User Interactive and Systems
- Mechanical, casing/enclosure Design and Fabrication
- Custom Made electronics products







HOME SERVICES PRODUCT CONTACT US
