Water Level Detector Electrode System

Water Level Detector Relay Board

Water Level Detector System

water level detector system panel

This is the distribution box for the water level detector system using electrode sensor, design and built by Hong Lam Engineering Pte. Ltd. .

The system consists of a total of 8 electrode sensor for 2 water tank. Each tank has electrode sensors of 4x different length to detect the water level.

When the water is too low, a water pump can be activated to transfer water to/from the tank. An emergency sensor is also position to prevent the water level being too high which can result is water overflow damage. The water level system is completely automated through the electrode sensors and pumps system.

The water level system is also wired up with indicators to alert the user. Remote monitoring can also be implemented so that the status can be monitored from a central control room.

The electronic control boards can be wired accordingly for your own water level control.

Contact Hong Lam Engineering to buy this water level detection system.



Click here if you are looking for other types of water level sensors for your project.

Wiring Diagram for Electrode Water Level Detector System

water level detector wiring diagram

Water Level Detector Control Boards – for Sale

The water level detector system consist of 3x electronic circuit boards which provides the automation control. They are namely,

  • Flow Switch & Auto Change-Over Relay Board
  • Water Level Detector Relay Board
  • Water Level Electrode Sensor Board

Flow Switch & Auto Change-Over Relay Board

water flow switch control relay board

The water flow switch board detects the water flow and will activate the system accordingly.

Water Level Detector Relay Board

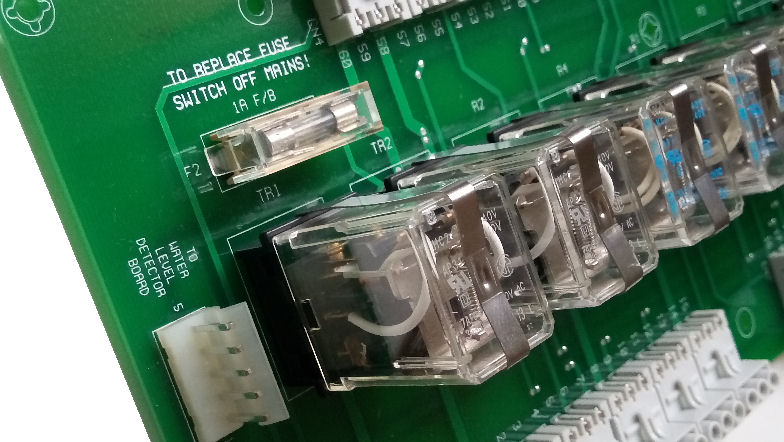

water level detector relay board

The water level detector relay board consist of 8 relays. Each is activated by the connected electrode sensors that are detecting the water level. When a water level is detected, the relay will be active, hence allowing the system to activate pumps, motor, etc… or alarm to alert the user.

The interface is simple to understand and the wiring is easy to connect.

Water Level Electrode Sensor Board

water level electrode sensor board

The water level electrode sensor board, connects up the 8 electrode sensor. 4 electrode sensors will be used for each water tank. The 4 electrode length will be at their respective water level, each indicating the following staus,

  • common
  • low water level cut-off
  • restart level
  • emergency level



Clearance Sales !!!     (for a Limited Time Period Only)

Buy Your Water Level Detector System Now

Flow Switch & Auto Change-Over Relay Board

click on the picture to view larger image.

Stock Qty: 96

Flow Switch & Auto Change-Over Relay Board with cable connector

Flow Switch & Auto Change-Over Relay Board

Water Level Detector Relay Board

click on the picture to view larger image.

Stock Qty: 191

Water Level Detector Relay Board

Water Level Detector Relay Board connector     Water Level Detector Relay Board, high voltage

Water Level Electrode Sensor Board

click on the picture to view larger image.

Stock Qty: 163

Water Level Electrode Sensor Board with cable connector

Water Level Electrode Sensor Board     Water Level Electrode Sensor Board



For purchase of this water level detection system or further information on the installation,
please contact Hong Lam Engineering Pte. Ltd (Your Specialized Pump Contractor).

Price will be discussed.

Also check out the other sensor electrodes, pumps and accessories product and services offering at their website (http://hlameng.com).

Hong Lam Engineering



Click here to explore more water level sensors and technologies.
