Automatic Identify Cable Connection | Wiring Trace & Map Productivity Tool

Are you looking for a tools that can help you identify and trace out the connection from your complex chunck of cable & harnesses with a press of a button?

Get hold of this awesome engineering tool for your electronic lab.

This tester maps out the connection of your cable saving you time and provide you with accurate results.

Advantage

  • Generate a comprehesive pin to pin connection report.
  • Fast.
  • Accurate connectivity report.
  • No more human error in your diagnosing of the cable wires connection.
  • Decide complex wiring connection.

Examine the pin connection at a glance through the generated mapped connection report.

Automatically mapped out all the wiring on the cable for you. You do not have to trace each pin connection one by one. You will get instant result through the generated test report.

No matter how complex your cable or harnesses is, the process of decoding your wire connection is still the same.

Simply connect each connector pin wire to one of the terminal on the PIC-350 connection decoder, it will automatically trace, identify and mapped out all the connection for you.

The only thing you need to do it to analyse the generated report and document the results.

Simple. No more painstaking connection measurement, checking pin by pin manually using a multimeter.

PIC-350 is an awesome and smart X-ray tool for your cable wires reverse engineering work.

A productivity tool that an electronic engineer will keep on their engineering work bench.

A great tool to discovery the connection of a new or unknown cable. Can also be use for trace passive connection on your PCB circuit board.

– Cable connection reverse engineer tools
– Cable connection tracer, mapping
– Auto mapping of complex cable wiring connection.
– Auto detection of wiring connection





Check out more information about this cable connection analyser product PIC-350.



Hotel Card Key Switch

Contactless Card Key Switch for
Hotel, Dormitory or Rental Room

This card key switch is designed to be activated by a contactless card. Only a contactless card can activate this switch for powering up the electrical system in a room. A normal card cannot trigger this card key

contactless hotel card key holder

Blue Glow Indicating Card Key Holder

Card key holder will glow softly in the dark to guide the guest to slot in their contactless card key.

The relay switch gets activated to turn on external power control system. The power system will switch on the electrical system in the room.



blue glowing hotel card key switch

Key Card Switch operated by RFID electronic circuit

Custom RFID reader circuit for hotel card key

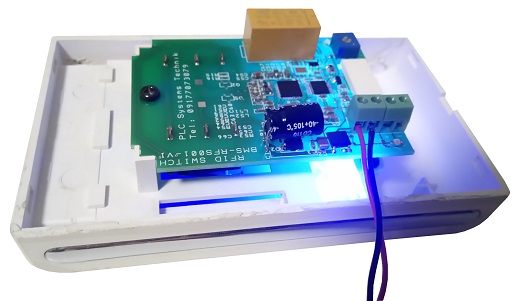

RFID Switch BMS-RFS001-V1 circuit board for hotel card keyRFID Switch BMS-RF001-V1



RFID Switch product by PLC Systems Technik, Philippines

Note: Please take note that this is only the key card holder to detect the contactless card. It cannot be used to power up your electrical appliance. External power control system is required to power up the rest of the electrical appliances within the room. The following examples of high current appliances have to be powered up by an external interface.

  • Aircon
  • Lightings in the room
  • Heater
  • Fridge
  • TV
  • etc…

Other Custom RFID Products



Water Leakage Sensor | Detection & Monitoring

This page explores the various type of water sensor for the detecting of water leakage. These sensors are commonly used to detect water leakage from aircon condensation.

Aircon condensation water leakage is a very common sight in the industry. This problem is normally due to improper design and installation of the water drainage pipes. Water drainage pipes installed were too small resulting in water clogged by dust or mould when used over time. Some water drainage pipe was seen to be installed in a anti-gravity manner, which makes it impossible for any water to drain out.

->> Click here to learn more other problem relating to aircon water leakage.

It is important to ensure how these pipes are deployed during the installation process so that you will not be faced with water leakage issues.

If you are already facing the problem, consider reconstructing your water drainage system or implement the following sensor to reduce your trouble.

Aqua Switch Water Sensor

AquaBlock or Aqua switch is installed in water tray for detecting of water leak from aircon or pipes. It can also be mounted at a specific height in the tank to detect water level. The aqua switch is only a block and does not have any moving parts.


Aqua block water sensor for aircon leak detection

Aqua Block

The sensor is a simple relay switch which will activate when water touches the sensor block.

Advantages

  • No moving mechanical parts
  • Relay output (dry contact switch output)
  • Simple to install
  • Suitable for aircon water leaking detection

Water Leak Sensor Cable

This sensor looks like a yellow cable or rope. This sensor cable is typically laid on the floor or above the ceiling to detect water leakage. Any water touching this water sensor can be detected by the connected electronic sensor box. The cable can be place where water leakage is likely to befound.

Water leakage detection sensor for computer server room aircon leakage detection Click here for product information.

This type of sensor cable is commonly deployed in computer server room where there are many aircon system installed. Aircon leak is a common problem in a server room.

Other Type of Water Sensors

Check out our other pages for more water sensing technology.

Contact PIC-CONTROL for further information.

Short Circuit Alarm

A short circuit can happen which can interrupt your equipment or other electronic devices.

Custom Short Circuit Alarm

We can custom design short-circuit detector to sense any abnormal condition and trigger an alarm alert.

Projects

Check out our custom electronic design service or contact PIC-CONTROL for more information.

High Voltage Measurement Probe Circuit

High voltage electrical pulse probe measurement

High Voltage Electrical Pulse Probe Digital Meter

Operate by a 9V battery, pulse probe digital meter detects high voltage pulse and measures the energy if the electrical pulse.

The measurement range from 1KVolt to 10KVolt.

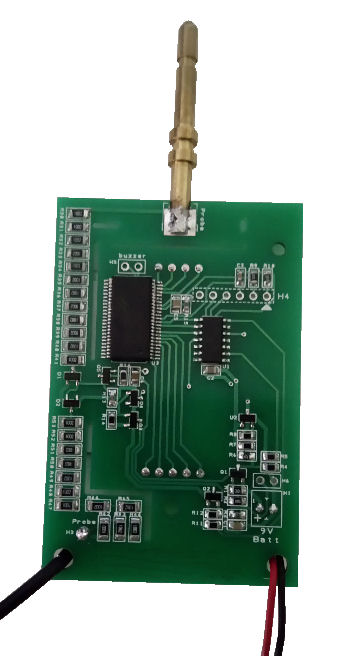

High voltage pulse electronic circuit board

The main probe that is mounted onto the PCB board will be used for touching the line with the high electrical pulse. The wired probe is extended and will be inserted into the ground earth for reference.

The device also displays the battery lifespan and blinks when the battery level is too low.

There is no on/off button. The device will be automatically switched on when a battery is inserted or when a high voltage pulse is detected on the probe. When the detected voltage is >10KVolt, the meter will display “HI” to indicate that the detected voltage has exceeded the measurement range. (high voltage sensor)

Contact PIC-CONTROL to custom design and develop a high voltage pulse measurement electroic sensing device.

Touch Buttons User Interface Panel

Control box electronic with on/off switch and touch buttons

Custom Touch Button User Interface Panel

The custom panel’s user interface buttons is designed with capacitive touch sensors. The touch sensor is embedded directly onto the PCB which enables a user to interact and operates similarly to a physical push button switch.


Touch button user interface panel

Elegant Aesthetics Panel Finishing

The simple and elegant panel buttons can be designed to match the look and feel of your product.

Custom sticker, laminate or silkscreen can be designed to overlay on top of the touch button sensors to suit your theme.

Sticker overlay onto user touch panel button interface

Indicator Status Light

LED light indicators are assembled behind the PCB board so that the panel surface is flat and clear for sticker/laminate overlay.

The user is able to monitor the current status of the system with a quick glance.

Feedback from Tone Sound

Tone feedback is design into the touch button panel to enhance the user interaction experience.

A sound tone is a better form of feedback for a user interacting with your product.

This is unlike a visual indicator where the user has to specifically focus their attention on.

Visual Text LCD Display

An additional display panel can be integrate to display more information. Smart device interactive design.

Control Electronics and Connectors

Inside control box electronic and pluggable connectorsPower supply and interface circuit board inside enclosure casing

Cost Effective Solution

Compare to a physical push button switch, touch button switch is simple and can be cheaper in the implementation.

It has almost no mechanical wear and tear, or limited operating cycles.

Contact PIC-CONTROL for customisation of your touch sensing solution today.

Also, check out our mini-touch sensor circuit module.

interface control circuit boardelectronic control circuit board

Card Reader for CEPAS Ezlink NetsFlashPay CAN Number

Check out this Card Reader for reading out the CAN number of local Singapore CEPAS cards, Ezlink or NetsFlashPay.

This card reader reads out the CAN number. A CAN number is a unique number which can uniquely identify the card.

Card Key Holder

(Energy Saving)
Product code: PIC-345

Door Access

(Wall Mounted)
Product code: PIC-346

Desktop Reader

(Guest Registration)
Product code: PIC-025

Ezlink CAN Card Holder CEPAS Reader (Energy Saving) CEPAS Door Access Card Reader HID Desktop USB CEPAS CAN Card Reader (Guest Registration)
CEPAS NetsFlashPay CAN Card Holder Reader (Energy Saving) CEPAS Door Access Card Reader HID USB CEPAS CAN Card Reader (Guest Registration)

CEPAS CAN Number Card Reader

Circuit Board (Custom OEM)

Ezlink CAN number card reader (CEPAS)          Custom OEM CEPAS CAN Card Reader

This reader allows you to use publicly available cards for your own application. You do not need to re-issue additional cards for your own application. This also means that user need not have to carry multiple cards with them.

Application

  • Protect your visitor/customer privacy. Obtain unique ID of visitors or customers without revealing their identity card.
  • Using easily available CEPAS card for permanent or temporary access to private rooms without issue new cards.
  • In-house gaming or credit point system.
  • Guest visitors registration.
  • Membership registration and tracking.

If you are looking you are looking for a card payment terminal for your automated cashier, [you can click here and check out this page].

CAN number RFID readerContactless RFID card reader

Features

  • Communication connection (Custom option for Wiegand, RS232, RS485, Ethernet, USB Virtual Com Port, USB Keyboard Wedge)
  • Instant readout of the CAN number (ASCII text) of the card.
  • Buzzer feedback
  • Read light indicator
  • No need to install any software or driver (for USB Keyboard Wedge).
  • Can act as an HID keyboard for spreadsheet or text file data entry (keyboard wedge application like a barcode scanner)
  • User mode switch to select the operation mode
  • Can be customised to read any type of 13.56MHz HF RFID cards.

CEPAS CAN Number Card Reader

This card reader can be custom programmed by our engineer to read other types of 13.56MHz RFID cards/tags. Some of the cards/tags are as follows,

  • Mifare Ultralight (U1X), Ultralight C (U2X)
  • Mifare Classic Mini (S20), Classic (S50), Classic (S70)
  • Mifare Plus S (SPLUS 60), Plus S (SPLUS 80)
  • Mifare Plus X (PLUS 60), Plus X (PLUS 80)
  • Mifare DESFire EV1
  • Sony Felica, Felica Lite
  • NFC tags, NFC phone/device
  • Emulate mode to emulate RFID tags
  • ISO/IEC14443-3 Type A, ISO/IEC14443-4 Type A
  • ISO/IEC14443-3 Type B, ISO/IEC14443-4 Type B
  • NFC IP-1 mode

Ezlink Card (CEPAS CAN number)

Ezlink CEPAS Card     Ezlink CEPAS Card CAN Number

FlashPay Card (CEPAS CAN number)

FlashPay CEPAS Card     Flashpay CEPAS Card CAN Number

CEPAS Compliance Cards (Co-brand)

The following types of cards can be CEPAS compliance. They can be used just like the card from Ezlink and FlashPay.

  • Passion Card membership card
  • Autopass Card (for Foreign Vehicle entering into Singapore)
  • Selected Credit Card (Standard Chartered Unlimited, Citibank SMRT, POSB Everyday Card, FEVO)

CAN Number Allocation for CEPAS Cards in Singapore

A CAN number is unique allows you to identify the cardholder group category in Singapore. This helps to identify if the card is a normal transportation payment card or a concession card. Information is obtained from Transit Link Pte Ltd.

  • 1000 xxxx xxxx xxxx (Adult CEPAS card)
  • 1009 xxxx xxxx xxxx (Adult Co-Brand)
  • 1111 xxxx xxxx xxxx (NETS Flashpay)
  • 8000 xxxx xxxx xxxx (Concession cards: Child, Pri, Sec, Ter, NS, Senior Citizen)
  • 8009 xxxx xxxx xxxx (Concession cards: Child, Pri, Sec, Ter, NS, Senior Citizen)
  • 8008 xxxx xxxx xxxx (Concession cards: Child, Pri, Sec, Ter, NS, Senior Citizen)

Transportation Card Around The World

FlashPay CAN number card reader (CEPAS)

More transportation card around the world for your card reader customisation.

  • Ezlink, FlashPay Card (Singapore)
  • Octopus Card (Hong Kong)
  • Touch ‘n Go (Malaysia)
  • Edy, nanaco, taspo, Waon (Japan)
  • Flazz (Indonesia)
  • Metro Card (United States)
  • Myki, Opal Card (Melbourne, Sydney)
  • PayPass, PayWave, FarePay (Credit Card Payment Network)

For the cards that you want to custom the read, you can send in 3 or more card samples. Please write down the data or text that is contained in the card that you want to read.

Custom RFID reader

Contact PIC-CONTROL for your custom RFID reader today.

Other RFID Products

Custom Cable Tester

Cable tester, custom design for cable harness assembly production.

Custom cable tester electronic kit

An operator can just simply plug in the cable connector to the tester to check for the cable harness assembly automatically.

An audible beep will be sound immediately after the operator plug-in the connector. This indicates that the cable’s wiring is correct. The operator can simply focus their vision on the manual connection work.

If there is no sound heard after plugging in, the cable’s wiring is probably incorrect or faulty. There will be LED indicator (orange colour) for each of the respective wiring. If any LED remains lighted up after plugging in the connector, they indicate a wiring fault. The fault due to the following,

  • incorrect pin connection.
  • the wire break resulting in a broken electrical connection.
  • the connector is not properly crimped or soldered.

Wire harness connection tester device

This custom tester has a monitoring mode which is designed to catch intermediate break wire connection that may be potentially existing in your the cable assembly. Intermediate wire connection fault can be due to a broken wire or cable that is not properly assembled. The fault may occur when the cable is touched or bend too much.

When all the connectors are connected to the cable tester, the tester will automatically enter into a monitoring mode. You should be able to hear 2 special beep sound which indicates that the tester is now in the monitoring mode. In this mode, all connectors are connected to the tester. Any connection break in the process of monitoring will trigger an error from the cable tester device.

To test your cable assembly in this mode, you can simply shake up the whole cable. The shaking can help to bring out any intermediate connection problem if there is any. You should see an error LED indicator (Red) lights up together with a long Error tone if an intermediate connection break is detected. The respective wire connection indicator (Orange LED) will also be displayed to indicate the exact wire that is having the intermediate connection problem.

Features of the Cable Tester [PIC-023]

Wire connectivity indicator lights up for faulty wires


  • Simple to use.
  • Instant audio beep and flashing LED light (Green) when the cable is plugged in, to indicate that the cable has passed the checking.
  • LED indicator (Orange) will remain lighted to pinpoint faulty wires
  • Able to catch potential intermediate connection fault in the cable.
  • LED (Red) and long buzzer tone to indicate detected cable problem.
  • Portable and can be designed to power up from USB power supply or from the battery.

Operating Procedure

Test for intermediate cable connection fault

  1. Plug in USB power cable, or insert batteries.
  2. Switch on the cable tester to power up. A test sequence will run to show that the buzzer and all the LED are working.
  3. Plug in one side of the cable onto the tester.
  4. Plug in the other side of the cable. The cable tester will detect the connection and begin testing the cable.
  5. A double beep sound and flashing Green LED indicates that the cable is tested ok.
  6. The respective LED indicator (Orange) for each of the wiring will diminish if the connection is mated correctly.
  7. If there is no sound heard after plugging in the cable, the cable is probably faulty. Check on the respective wire indicator (Orange LED) to determine the exact wire that is faulty. 1 or more LED should be lighted up which indicates incorrect or no connection.
  8. After the cable is all connected to the cable tester and has passed the wire connection test, the tester will enter into a monitoring mode. You should hear 2 special beep, followed by a blinking light from the green indicator, which tells you that the tester is now in the cable monitoring mode.
  9. In this cable monitor mode, you can continue to test the wired connection of your assembled cable harness. Shake your cable to see if there is any intermediate connection fault can be caught. If a glitch is detected due to the intermediate connection break, the cable tester device will be able to catch it. A long beep and error indicator (Red LED) will be lighted up. The respective wire indicator (Orange) will also be lighted up to pinpoint the exact wire that is causing this intermediate connection problem.
  10. The caught wire glitch fault will remain until all the wires are disconnected. The cable tester will then reset the test procedure.
  11. The operator can proceed to test the next cable harness set.

Other Optional Specialised Test Features

For dedicated wiring for precision/importance use, there are optional test that we can design to help you detect potential faults in your cable harness wiring.

The following are some of the specialised test that you may need to test on your assembled cable beside the basic connectivity check.

  • Ohm test or resistivity test for your wires and connectors, to check if the wires are crimped or fasten properly.
  • High voltage test, to ensure the wires are properly insulated.
  • High-speed data or RF test to ensure signal integrity quality of your assembled cable.

Custom Electronic Tester

Contact PIC-CONTROL for further information for your custom cable tester.

custom cable harness tester design

CO2 Carbon Dioxide Sensor

A carbon dioxide sensor, also known as a CO2 sensor is a sensor for the measurement of carbon dioxide gas level. The most common technologies used for CO2 sensors are infrared gas sensors (NDIR) and chemical gas sensors.

Many application measures indoor air quality using a CO2 sensor. Carbon dioxide does not have smell or colour. For factory production that releases by-product gas like the carbon dioxide gas, CO2 sensors act as a safety sensor to prevent production workers from health hazards due to lack of oxygen. There are more industrial applications.

Telaire T6613 CO2 Sensor

CO2 Carbon Dioxide Sensor (UART serial communication)


CO2 Gas Environmental Sensor.

Telaire 6613 CO₂ modules are factory calibrated to measure CO₂ concentrations levels up to 5000ppm

  • Measure CO2 gas
  • UART interface to microcontroller
  • 5V power input
  • Reliable Gas Sensor Solution.
  • Flexible CO2 sensor platform designed to interact with other microprocessor devices.

Check out this T6613 sensor documentation here.

Available in USB or Serial Communication UART Version

CO2 Carbon Dioxide Sensor (USB computer communication)

Optional:
For USB connectivity to this sensor (virtual serial communication version), you need to buy a USB to UART adapter cable for communication. Please contact sales@pic-control.com for further information. You can write a software program on your computer using Java language, C#, C++, etc… to interface to this sensor and read the CO2 gas reading.

Contact PIC-CONTROL for further information, or buy this CO2 Carbon Dioxide Sensor online at PIC-STORE.

Special Offer, limited stocks only!!!

More CO2 Sensors

More CO2 sensors available from CO2Meter logo

Many types of CO2 carbon dioxide sensors

CO2 Sensor Logger

Contact PIC-CONTROL for a custom sensor data logger for your carbon dioxide monitoring.



Electrode Water Level Sensor

Electrode water level sensor is also known as a “Conductivity Level Sensors”.

Electrode sensor basically requires a physical contact with the water to detect the water level. The water act as a resistance. Small electronic current will be passing through the water which helps the sensor to sense the water level. For this reason, not all liquid can use this sensor for detection. One example is the oil, which has an insulating property in nature. If you need to measure the level of a non-conducting liquid, consider using an ultrasonic water level sensor.

For a typical water tank or rain water level detection, the electrode sensor is an affordable and a commonly used method to detect the amount of water in a tank compared to other water level sensing method.

Electrode Sensor for Water Level Detection

An electrode sensing needs at least two contact point to function. For electrode with only a single probe, the other end of the sensor wire will be connected to a metallic tank (usually of stainless steel material). The metallic tank will act as the second probe. If the tank is not metal, or you do not want to connect the sensor wire to your tank, you can use a two probe electrode.

For multiple water level detection, you will need more probes. You can place up to a maximum of 5x probe for 3-4 water level detection. If you need to differential more water levels, you may like to consider using an ultrasonic water level sensor which can provide a higher resolution of detecting the water level.

Electrode water level sensing system
illustration from Omron logo website.

Reference:

Electrode Holder (PS-5S)

Electrode holder     Electrode holder and electrode probe
illustration from Omron logo website.

Available models for a different number of probes.

  • PS-5S
  • PS-4S
  • PS-3S

Mounting hole diameter to cut out for the electrode holder is Ø 65mm

Reference:

Electrode Probe or Rod

Electrode probe or electrode rod
illustration from Omron logo website.

Reference:

Installation Information

Reference:

Electrode Sensor Rod Replacement

Electrode sensor rod can get worn off after a period of operation. The electrode can be replaced. You can send in photos of your electrode and its holder for a quotation on a replacement. Please provide us with the size/length of the electrode and also the type of liquid you are using the electrode for.

Please also note that when your electrode sensor is not working, there may also be a chance that the electronic sensing system is faulty. Do check if the sensing electronic system is in good working condition before proceeding to change the electrode.

Send us your enquiry today.

More Water Level Sensing Technologies

Click here to check out this page for more water level sensing technologies, or this page to compare other water sensing technologies.
