Various connectors selection for your electronic design.
A quick glance of all the various connectors available for your electronic PCB design projects.
This adapter board helps convert your ribbon cables IDC connector to individual wire terminal connection. The wire output is inserted via the spring release terminal connector. Simply push the lever with a sharp tool (for example a screwdriver), insert your wire and then release the lever. Quick and simply for individual pin wire connection.
Features
60 pins IDC Connector with a quick connector release lever.
This adapter is custom design to convert 120pins PCI connector for access via a 60pins IDC connector.
Finger Connection Edge Pins
Card edge connector is designed to fit PCB edge finger connection pins. PCB board is typically 1.6mm in thickness.
The pins design is embedded on the PCB itself (board to board connection), saving you the need to buy and install a connector on the PCB board. This is much more cost-effective solution.
The PCB card is easy to plug in and out, making it suitable for hot-swap and mass test connection.
Typical Application
Mass testing of assembled PCB.
Extension of board functionality.
General purpose I/O processing board.
Hotswap electrical connection.
Custom Card Edge Adaptor Board
Contact PIC-CONTROL for your custom Card Edge PCB board design and fabrication.
We design for any type of card edge board connection.
Cable tester, custom design for cable harness assembly production.
An operator can just simply plug in the cable connector to the tester to check for the cable harness assembly automatically.
An audible beep will be sound immediately after the operator plug-in the connector. This indicates that the cable’s wiring is correct. The operator can simply focus their vision on the manual connection work.
If there is no sound heard after plugging in, the cable’s wiring is probably incorrect or faulty. There will be LED indicator (orange colour) for each of the respective wiring. If any LED remains lighted up after plugging in the connector, they indicate a wiring fault. The fault due to the following,
incorrect pin connection.
the wire break resulting in a broken electrical connection.
the connector is not properly crimped or soldered.
This custom tester has a monitoring mode which is designed to catch intermediate break wire connection that may be potentially existing in your the cable assembly. Intermediate wire connection fault can be due to a broken wire or cable that is not properly assembled. The fault may occur when the cable is touched or bend too much.
When all the connectors are connected to the cable tester, the tester will automatically enter into a monitoring mode. You should be able to hear 2 special beep sound which indicates that the tester is now in the monitoring mode. In this mode, all connectors are connected to the tester. Any connection break in the process of monitoring will trigger an error from the cable tester device.
To test your cable assembly in this mode, you can simply shake up the whole cable. The shaking can help to bring out any intermediate connection problem if there is any. You should see an error LED indicator (Red) lights up together with a long Error tone if an intermediate connection break is detected. The respective wire connection indicator (Orange LED) will also be displayed to indicate the exact wire that is having the intermediate connection problem.

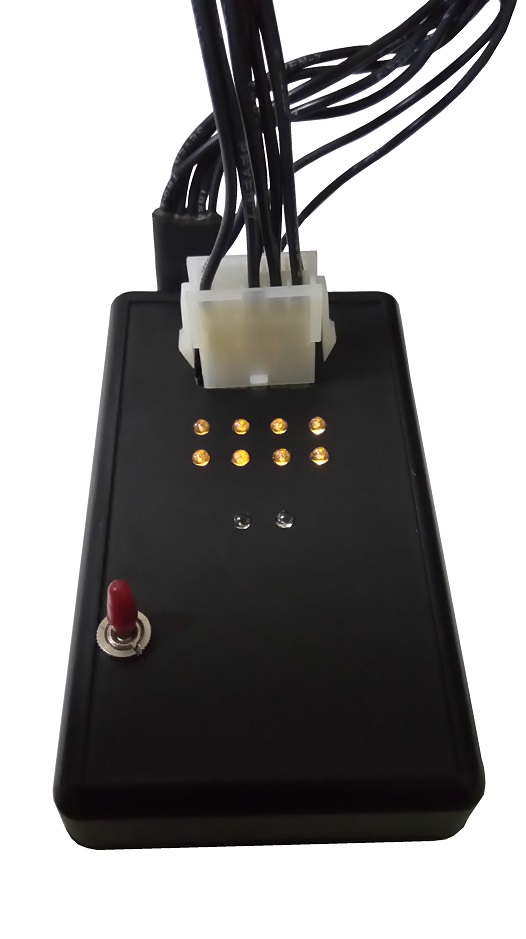

Features of the Cable Tester [PIC-023]
Simple to use.
Instant audio beep and flashing LED light (Green) when the cable is plugged in, to indicate that the cable has passed the checking.
LED indicator (Orange) will remain lighted to pinpoint faulty wires
Able to catch potential intermediate connection fault in the cable.
LED (Red) and long buzzer tone to indicate detected cable problem.
Portable and can be designed to power up from USB power supply or from the battery.
Operating Procedure
Plug in USB power cable, or insert batteries.
Switch on the cable tester to power up. A test sequence will run to show that the buzzer and all the LED are working.
Plug in one side of the cable onto the tester.
Plug in the other side of the cable. The cable tester will detect the connection and begin testing the cable.
A double beep sound and flashing Green LED indicates that the cable is tested ok.
The respective LED indicator (Orange) for each of the wiring will diminish if the connection is mated correctly.
If there is no sound heard after plugging in the cable, the cable is probably faulty. Check on the respective wire indicator (Orange LED) to determine the exact wire that is faulty. 1 or more LED should be lighted up which indicates incorrect or no connection.
After the cable is all connected to the cable tester and has passed the wire connection test, the tester will enter into a monitoring mode. You should hear 2 special beep, followed by a blinking light from the green indicator, which tells you that the tester is now in the cable monitoring mode.
In this cable monitor mode, you can continue to test the wired connection of your assembled cable harness. Shake your cable to see if there is any intermediate connection fault can be caught. If a glitch is detected due to the intermediate connection break, the cable tester device will be able to catch it. A long beep and error indicator (Red LED) will be lighted up. The respective wire indicator (Orange) will also be lighted up to pinpoint the exact wire that is causing this intermediate connection problem.
The caught wire glitch fault will remain until all the wires are disconnected. The cable tester will then reset the test procedure.
The operator can proceed to test the next cable harness set.
Other Optional Specialised Test Features
For dedicated wiring for precision/importance use, there are optional test that we can design to help you detect potential faults in your cable harness wiring.
The following are some of the specialised test that you may need to test on your assembled cable beside the basic connectivity check.
Ohm test or resistivity test for your wires and connectors, to check if the wires are crimped or fasten properly.
High voltage test, to ensure the wires are properly insulated.
High-speed data or RF test to ensure signal integrity quality of your assembled cable.
For DC barrel socket, buy 2.1mm pin size to be safer. Most adaptor plug can handle 2.1mm as well as 2.5mm pin size. For DC barrel plug, buy 2.5mm hole size to be safer. Most socket can accept both 2.1mm as well as 2.5mm hole size.
IDC socket connector
IDC header connector
IDC header connectorwith side locking latch
common tub width is 6.35mm.

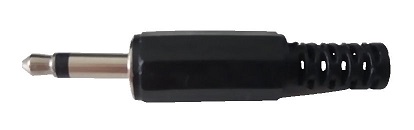

Quick Spring Release Connector for Audio Speaker Wires
Pin 1 – Pin 5, Pin 6 – Pin 9
Pin 5 – Pin 1, Pin 9 – Pin 6
Pin 1 – Pin 8
Pin 1 – Pin 6
